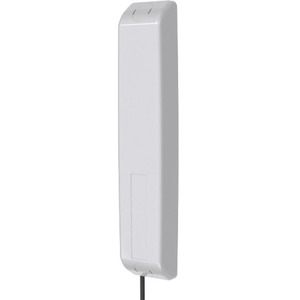

Panorama Antennas LPW-BC3G-26 | Low Profile Wall Mount 2G/3G/4G LTE Antenna
Panorama Antennas LPW-BC3G-26 | Low Profile Wall Mount 2G/3G/4G LTE Antenna - 698 MHz to 960 MHz, 1710 MHz to 2700 MHz - 2 dBi - Cellular Network, Wireless Data Network - Gray - Wall/Panel - Omni-directional - SMA Connector
| $20.69 | Retail $25.20 |
- Receive signals from multiple directions with this omnidirectional antenna
- Operates at 2 dBi gain
- Widely used in cellular network
- Antenna can be mounted as wall/panel
By:
Panorama Antennas
Manufacturer:
Panorama Antennas Ltd
Product ID:
139952
Item:
LPW-BC3G-26-2SP
Our Part #
6DC669
Condition
New
$20.69EA
$25.20
$25.20
Availability
Only 104 Left In Stock
Product description
Panorama Antennas LPW-BC3G-26 | Low Profile Wall Mount 2G/3G/4G LTE Antenna - 698 MHz to 960 MHz, 1710 MHz to 2700 MHz - 2 dBi - Cellular Network, Wireless Data Network - Gray - Wall/Panel - Omni-directional - SMA Connector
698 MHz to 960 MHz, 1710 MHz to 2700 MHz - 2 dBi - Cellular Network, Wireless Data Network - Gray - Wall/Panel - Omni-directional - SMA Connector
Specifications
Antenna Gain
2 dBi
Directivity
Omni-directional
Operating Frequency Range
1710 MHz to 2700 MHz
Operating Frequency Range
698 MHz to 960 MHz
Application/Usage
Cellular Network
Application/Usage
Wireless Data Network
Brand Name
Panorama Antennas
Connector Type
SMA
Depth
6.50"
Form factor
Wall/Panel
Height
0.77"
Manufacturer
Panorama Antennas Ltd
Manufacturer Part Number
LPW-BC3G-26-2SP
Manufacturer Website Address
http://www.panorama-antennas.com
Marketing Information
The Panorama LPW range of antennas are designed to decrease the lifetime cost of M2M and smart metering installations by offering a robust effective antenna that is easy to install and lasts the lifetime of the installation without the need for maintenance.
- Low Profile wall panel or enclosure mount
- Mount by screw fixings or adhesive pad
- Supports 2G/3G/4G 700 & 800MHz & 868 & 915MHz
The antenna offers ground-plane independent omni-directional performance across global cellular and LTE bands making it a versatile solution for any number of applications. The efficient element design ensures a high first time connection rate and an ongoing robust communications link even in problematic coverage areas.
The antenna can be installed using the supplied automotive grade adhesive pad or via the integrated screw mounting bosses. If the antenna is panel mounted the cable can be routed through a hole in the adhesive pad to run invisibly into the panel behind.
Product color
Gray
Product Name
LPW-BC3G-26 | Low Profile Wall Mount 2G/3G/4G LTE Antenna
Product Type
Antenna
Width
1.26"
